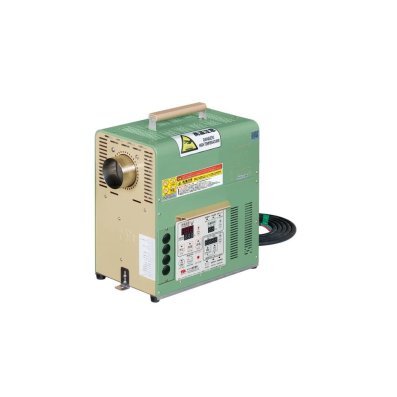

Hot Air Generator TSK-C Series
Thông tin mô tả
"Gọi 0974400989 để được tư vấn miễn phí"
Cam kết hàng mới 100%
Bảo hành chính hãng
- Mr. Hoàng Tấn
Hotline: 0974400989
Email: hoangtan@ame-engineering.com
- Ms. Ánh Tuyết
Hotline: 0948998638
Email: anhtuyet@ame-engineering.com
"Kansai Electric Heat Corp., founded in 1931 and based in Higashiosaka-city, is a manufacturer and supplier of electric hot air generators and electric heaters.
The company offers a wide spectrum of products such as spot heaters, duct heaters, portable dryers, air nozzles, and air filters among others. The company also manufactures piping sheet metal materials, metal processing, general assembly, and performance inspection. Its products serve various industries such as electrical appliances, mechanical parts, casting and forging, food, and chemicals among others."
High-Performance Electric Hot Air Generator!
- An electric hot air heater system that combines a heater, control panel, and heat-resistant air blower in a single unit. Capable of unmanned, continuous operation 365 days a year.
- Simply connect the power cable and it is ready to use.
- With intermittent operation function.
Thông tin chung về dòng sản phẩm Máy phát khí nóng Kansai Electric TSK-C series

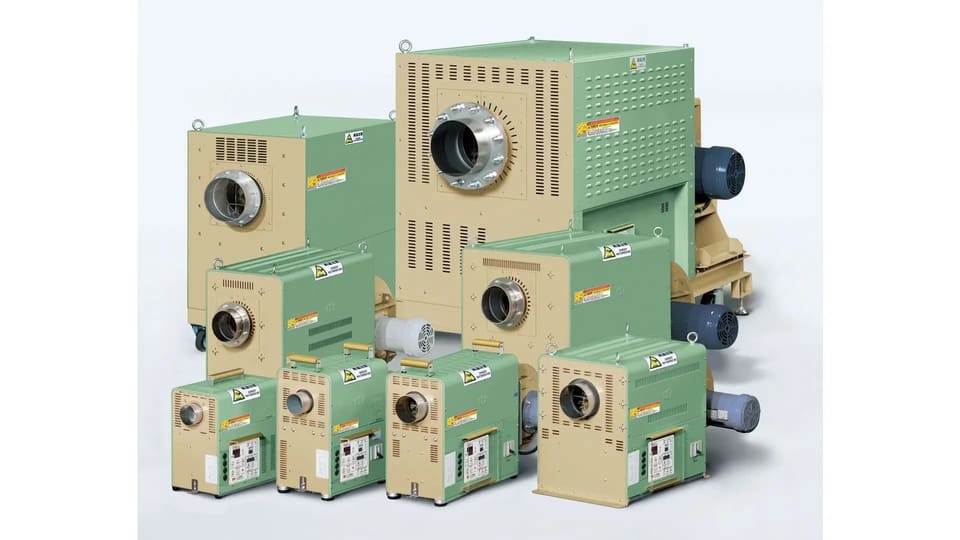

TSK-C Series Electric Hot Air Generator
★ Maximum continuous operating temperature: 350°C: Precise temperature control in 1 °C increments up to 350°C
★ Heater capacity: 2 kW to 120 kW
★ Equipped with high-efficiency honeycomb block heater
★ Includes inverter for airflow adjustment (adjustable from 20 to 60 Hz) → Energy-saving
★ All models equipped with heat-resistant blower for hot air circulation → Energy-saving
Hot air circulation temperature:
- TSK-18: up to 140 °C
- TSK-23 to TSK-200: up to 230 °C
★ Blower motor capacity: 80 W to 7500 W
★ All models equipped with I/O service terminals
★ Equipped with multiple built-in safety circuits using high-reliability thermocouples
★ Supports remote control panels, airflow direction change, and multiple voltage ratings (factory-set to order; please specify at purchase)
★ Programmable timer: set from 1 minute to 99 hours 59 minutes, in 1-minute increments
Ứng dụng (application):
★ Unidirectional Flow Drying Oven
★ Hot Air Circulation Drying Oven
Mã hàng thông dụng (Model lineup):
| Hot Air Generator TSK-18 | Hot Air Generator TSK-23 | Hot Air Generator TSK-33 | Hot Air Generator TSK-42 |
| Hot Air Generator TSK-52 | Hot Air Generator TSK-56 | Hot Air Generator TSK-62 | Hot Air Generator TSK-72 |
| Hot Air Generator TSK-82 | Hot Air Generator TSK-92 | Hot Air Generator TSK-102 | Hot Air Generator TSK-122 |
| Hot Air Generator TSK-132 | Hot Air Generator TSK-200 |
Thông số kỹ thuật (Specifications):
| Model |
TSK-18 |
||
|---|---|---|---|
| Model Nos. | 3200-2C-008Y | 3200-3.5C-008Y | 3200-5C-008Y |
| Power Supply | 3-phase 200 V, 50/60 Hz | ||
| Heater Capacity | 2 kW | 3.5 kW | 5 kW |
| Max Outlet Air Temp. | 350 °C | ||
| Max Inlet Air Temp. | 140 °C | ||
| Max Air Volume | 3.5 m³/min | ||
| Max Static Pressure | 0.95 kPa | ||
| Model |
TSK-23 |
|
|---|---|---|
| Model Nos. | 3380-480-3C-013YA-LB | 3380-480-5C-013YA-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
|
| Heater Capacity | 3 kW | 5 kW |
| Max Outlet Air Temp. | 350 °C | |
| Max Inlet Air Temp. | 230 °C | |
| Max Air Volume | 5.3 m³/min | |
| Max Static Pressure | 1.2 kPa | |
Sản phẩm được AME ENGINEERING nhập khẩu trực tiếp từ hãng sản xuất và cung cấp đến khách hàng, đảm bảo chính xác yêu cầu kỹ thuật và số lượng đã đề ra . Ngoài ra, hàng hóa được cung cấp còn kèm theo đầy đủ giấy tờ chứng nhận chất lượng, xuất xứ hàng hóa liên quan đến sản phẩm như: Certificate of Original & Certificate of Quality and Quantity.
