Thiết bị đo lưu lượng gas Azbil CMG series

Azbil Gas flow meter CMG series

The model CMG_ _ _ gas flow rate monitor is a compact high-accuracy mass flow meter. It accurately indicates the mass flow rate at 0 °C and one atmospheric pressure, unaffected by changes in the gas temperature and pressure. The gas flow rate monitor offers a wide range of functions, such as digital indication of instantaneous and totalized flow, event output, and analog output. In addition to its wide rangeability, the gas flow rate monitor can be used to measure fuel gases. It is also useful for air-fuel ratio control and energy management for burners and furnaces.

Thông số kỹ thuật (Specifications):

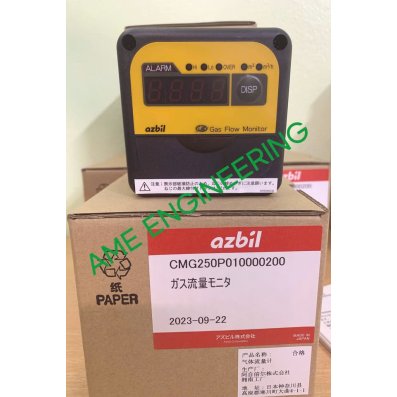

★ Model: CMG250P010000200

★ Pipe size 25 A (1B)

★  Screw connection: Rc thread 1"

★ Gas type:  Propane (propane 98%, butane 2%)

★ Flow rate range:  1.00-10.00 m3/h (normal) (CMG25)

★ Output analog signal: 1 to 5 Vdc

★ Event output 1: 1a contacts (close when alarm occurs)

★ Event output 2:  NPN open collector output

★ Operating pressure range:  100 kPa or less

★ Power supply:  200 Vac (50/60 Hz)

★ Protective structure :IP54 (JIS C 0920)

★ Azbil (Made in Japan)
